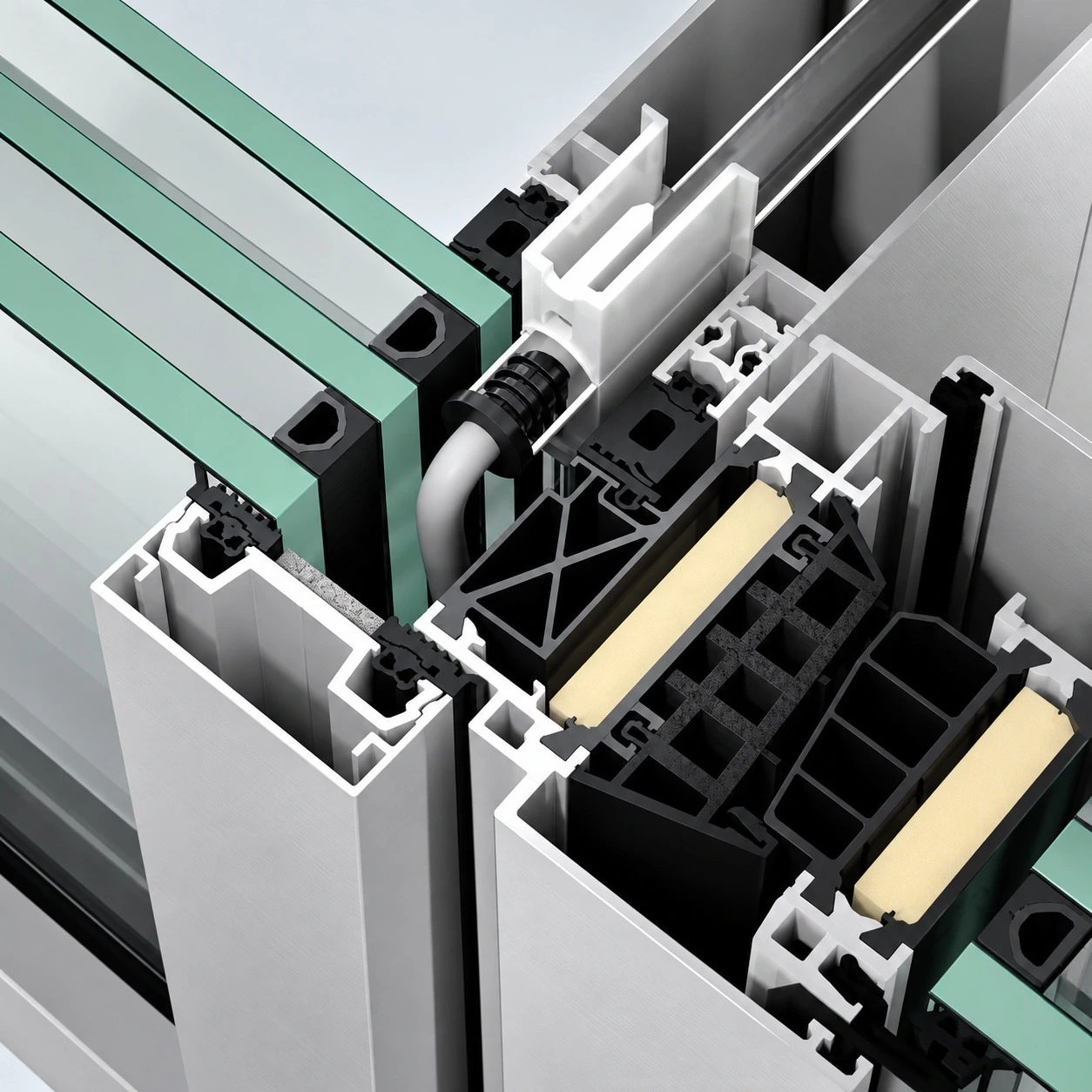

Schüco FWS 50 – Aluminium Façade & Curtain Wall System
The Schüco FWS 50 is a high-performance aluminium façade and curtain wall system designed for commercial buildings, luxury residences and modern architecture. Featuring a slim 50 mm face width, it supports large glass façades, skylights and floor-to-ceiling glazing. With flexible design options and integration with Schüco windows and doors, the system offers wind load resistance up to 3000 Pa, water tightness up to 1200 Pa and reliable structural performance.
Key Features
- 50 mm Slim Face Width: Maximises glass visibility and creates clean, modern façade designs.
- Flexible Façade Applications: Supports large glass curtain walls, skylights and floor-to-ceiling glazing.
- Integrated System Compatibility: Allows integration with Schüco aluminium windows, doors and sliding systems.
- Tested Weather Performance: Offers wind load resistance up to 3000 Pa, water tightness up to 1200 Pa and air permeability testing up to 600 Pa.
| Specification | Value |
|---|---|
| Profile Face Width | 50 mm |
| Maximum Weight | Up to 1080 kg |
| Maximum Glass Thickness | 62 mm |
| Water Tightness | Up to 1200 Pa |
| Wind Load Resistance | Up to 3000 Pa |
| Air Permeability | Up to 600 Pa |
