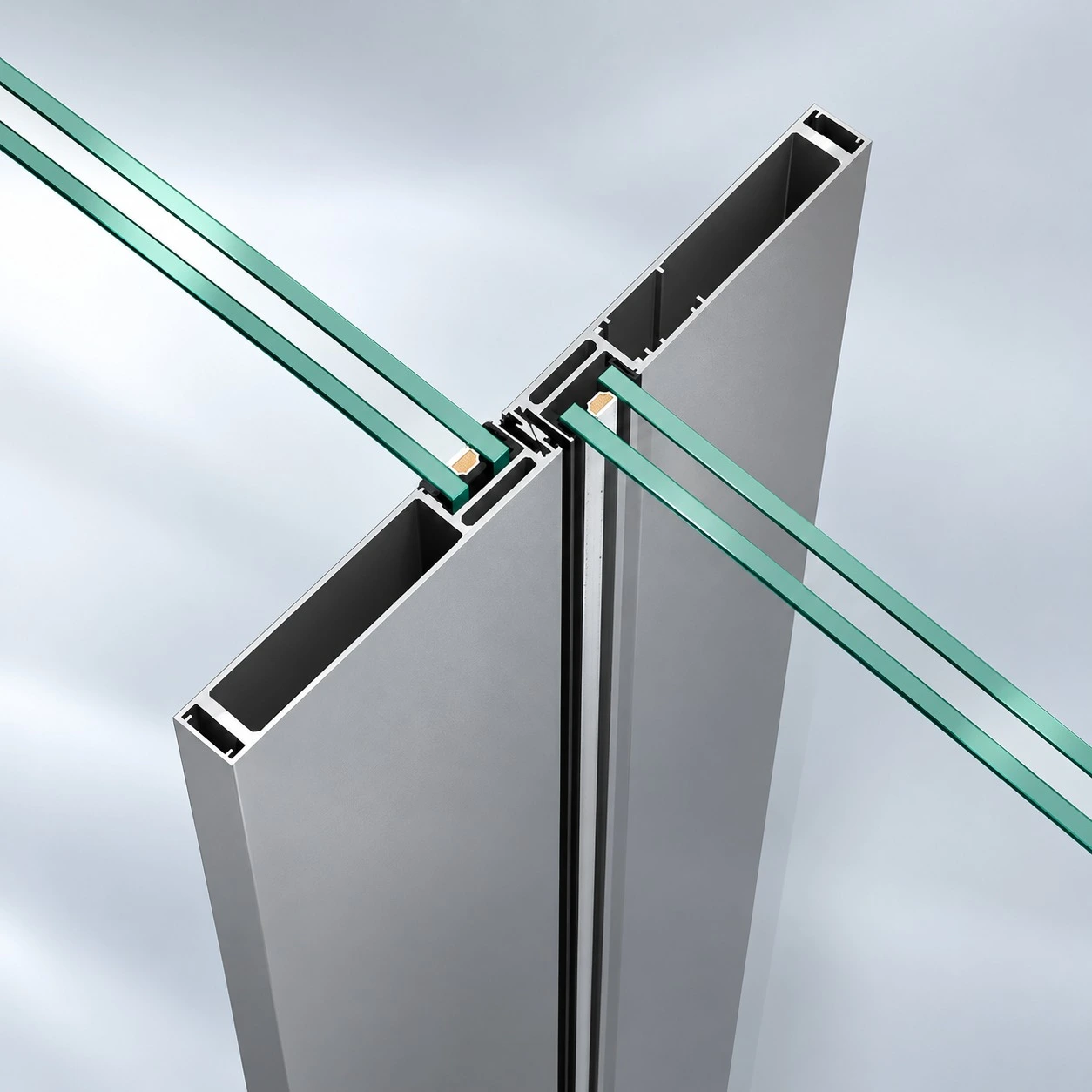

Schüco AS 39 PD.NI – Slimline Aluminium Sliding Door System
The Schüco AS 39 PD.NI is a slimline aluminium sliding door system designed for luxury villas, modern homes and commercial spaces. Featuring minimal frames, floor-to-ceiling glazing and large glass panels, it maximises natural light and outdoor views. With double-track and triple-track configurations, 90° corner openings and integrated flyscreen options, the system combines contemporary design with smooth sliding functionality and tested performance.
Key Features
- Slimline Aluminium Profiles: Minimise visible frames and maximise glass areas for uninterrupted views.
- Floor-to-Ceiling Glazing: Supports large glass panels for expansive openings and natural daylight.
- Flexible Sliding Configurations: Offers double-track, triple-track and 90° corner sliding options.
- Integrated Design Features: Includes continuous pull-grip, flyscreen and optional inside/outside locking solutions.
| Specification | Value |
|---|---|
| Maximum Vent Height | 3500 mm |
| Maximum Vent Width | 3000 mm |
| Maximum Vent Weight | Up to 300 kg |
| Maximum Glass Thickness | 32 mm |
| Sound Insulation | 40 dB |
| Water Tightness | Up to 300 Pa |
| Wind Load Resistance | Up to 3000 Pa |
| Air Permeability | Up to 600 Pa |
