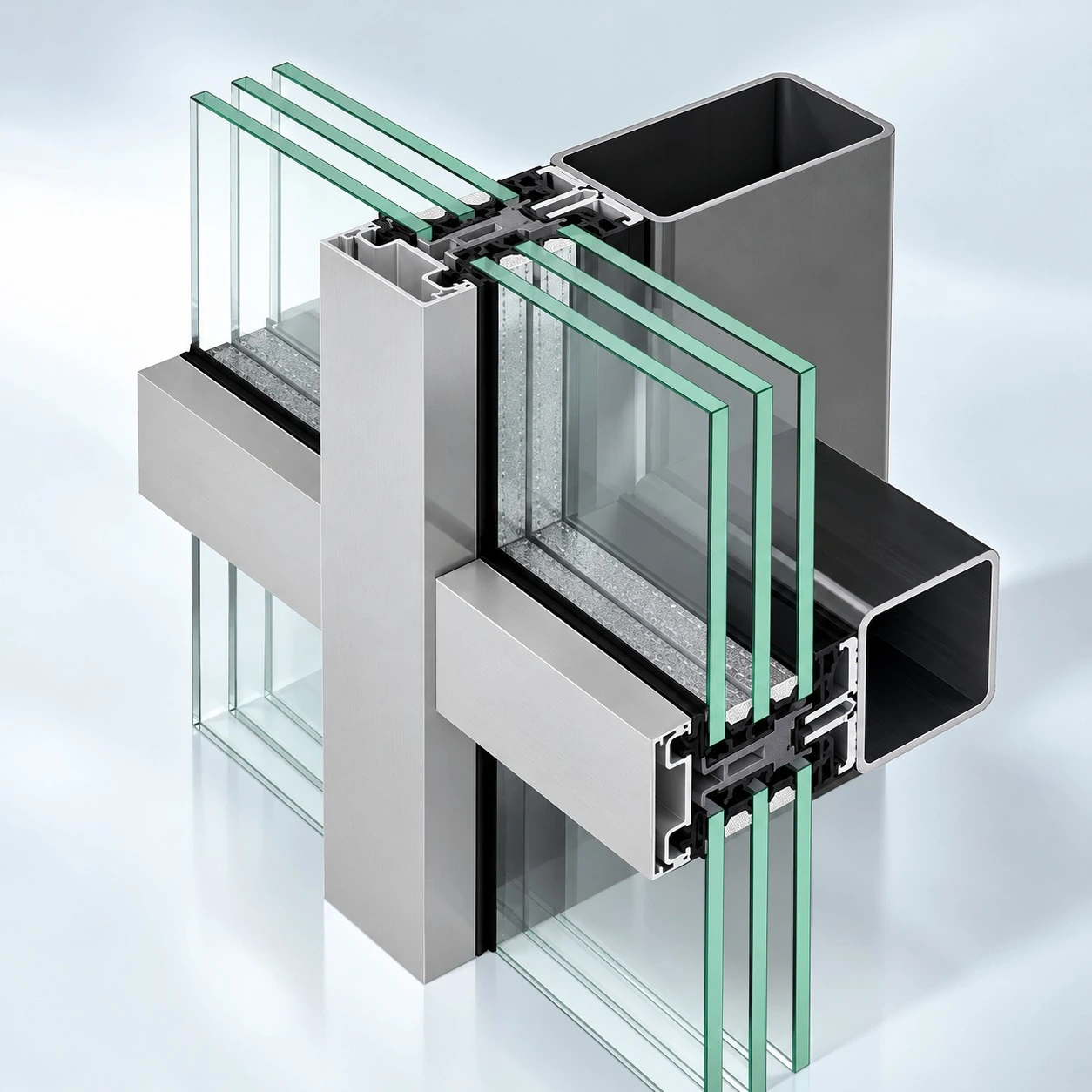

Schüco AOC 50 ST – Aluminium Façade System for Steel Structures
The Schüco AOC 50 ST is an aluminium façade system designed for steel-supported curtain walls, glass roofs and skylights. Featuring a slim 50 mm system width, it supports large glass panels and triple glazing for maximum natural light and architectural transparency. With efficient load transfer, energy-efficient construction and compatibility with Schüco AWS 114 ventilation windows, the system offers flexible solutions for commercial buildings and modern architectural projects.
Key Features
- Steel Substructure Compatibility: Designed for aluminium curtain wall and façade installations on steel frameworks.
- Large-Scale Glazing: Supports expansive glass façades and triple-glazed configurations.
- Façade & Skylight Applications: Suitable for vertical glass façades, glass roofs and skylights with pitches down to 2°.
- Integrated Ventilation: Compatible with Schüco AWS 114 window systems for natural and automated ventilation solutions.
| Specification | Value |
|---|---|
| Face Width | 50 mm |
| Maximum Weight | Up to 1080 kg |
| Max. Glass Thickness | 70 mm |
| Water Tightness | Up to 1200 Pa |
| Wind Load | Up to 3000 Pa |
| Air Permeability | Up to 600 Pa |
