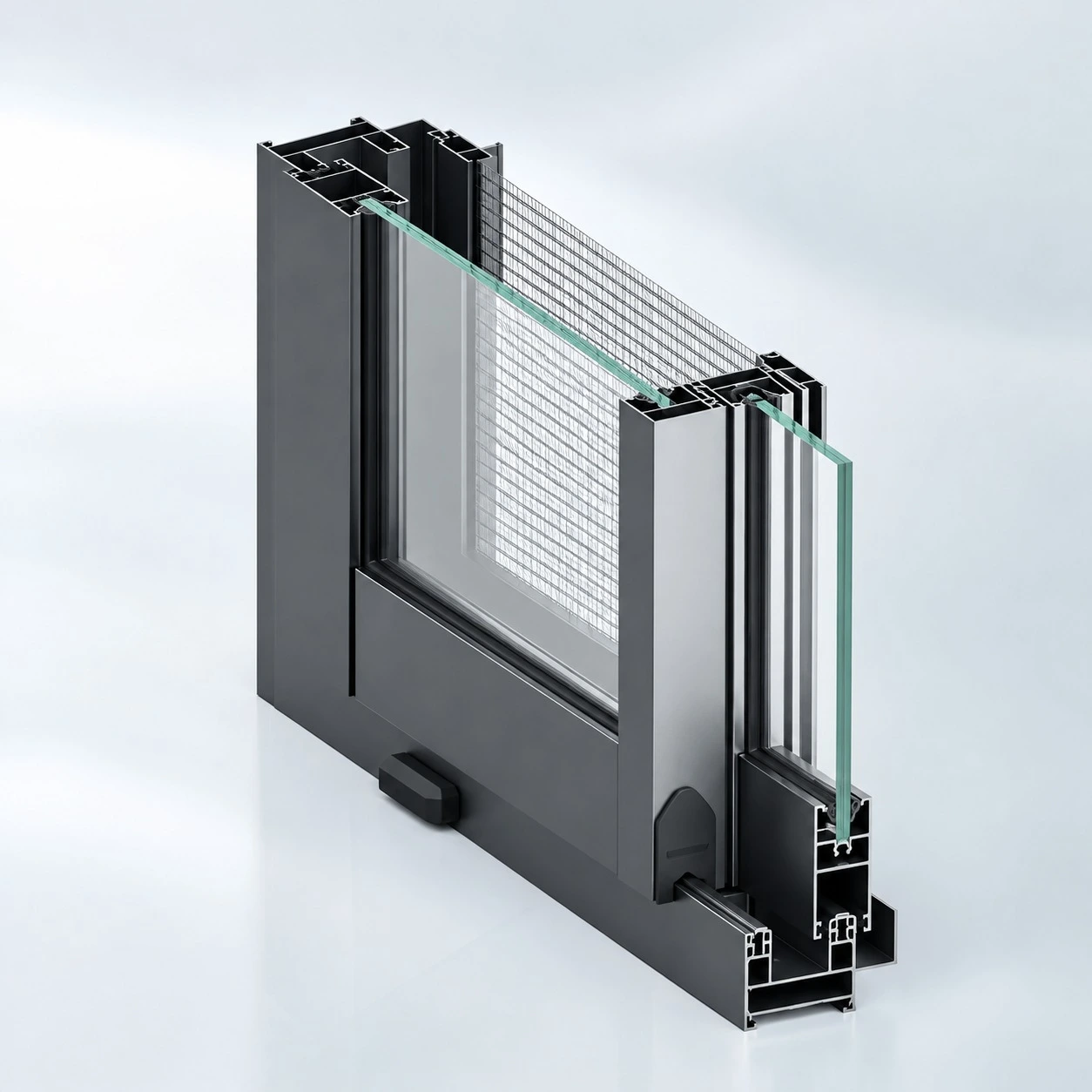

Schüco AS SC 30.NI – Aluminium Sliding Window System
The Schüco AS SC 30.NI is a modern aluminium sliding window system designed for residential spaces, combining slim profiles with large glass areas for maximum natural light. Available in two-track and three-track configurations, it supports single and double glazing for flexible architectural designs. Engineered for wind load resistance, water tightness and air tightness, the system offers smooth sliding operation and reliable performance.
Key Features
- Narrow aluminium profiles for larger glass areas
- Two-track and three-track sliding configurations
- Single and double glazing compatibility
- Designed for wind load resistance, water tightness and air tightness
| Specification | Value |
|---|---|
| Maximum Vent Height | 2400 mm |
| Maximum Vent Width | 1200 mm |
| Maximum Vent Weight | Up to 120 kg |
| Maximum Glass Thickness | 22 mm |
| Sound Insulation | 30 dB |
| Water Tightness | Up to 450 Pa |
| Wind Load Resistance | Up to 2700 Pa |
| Air Permeability | Up to 600 Pa |
