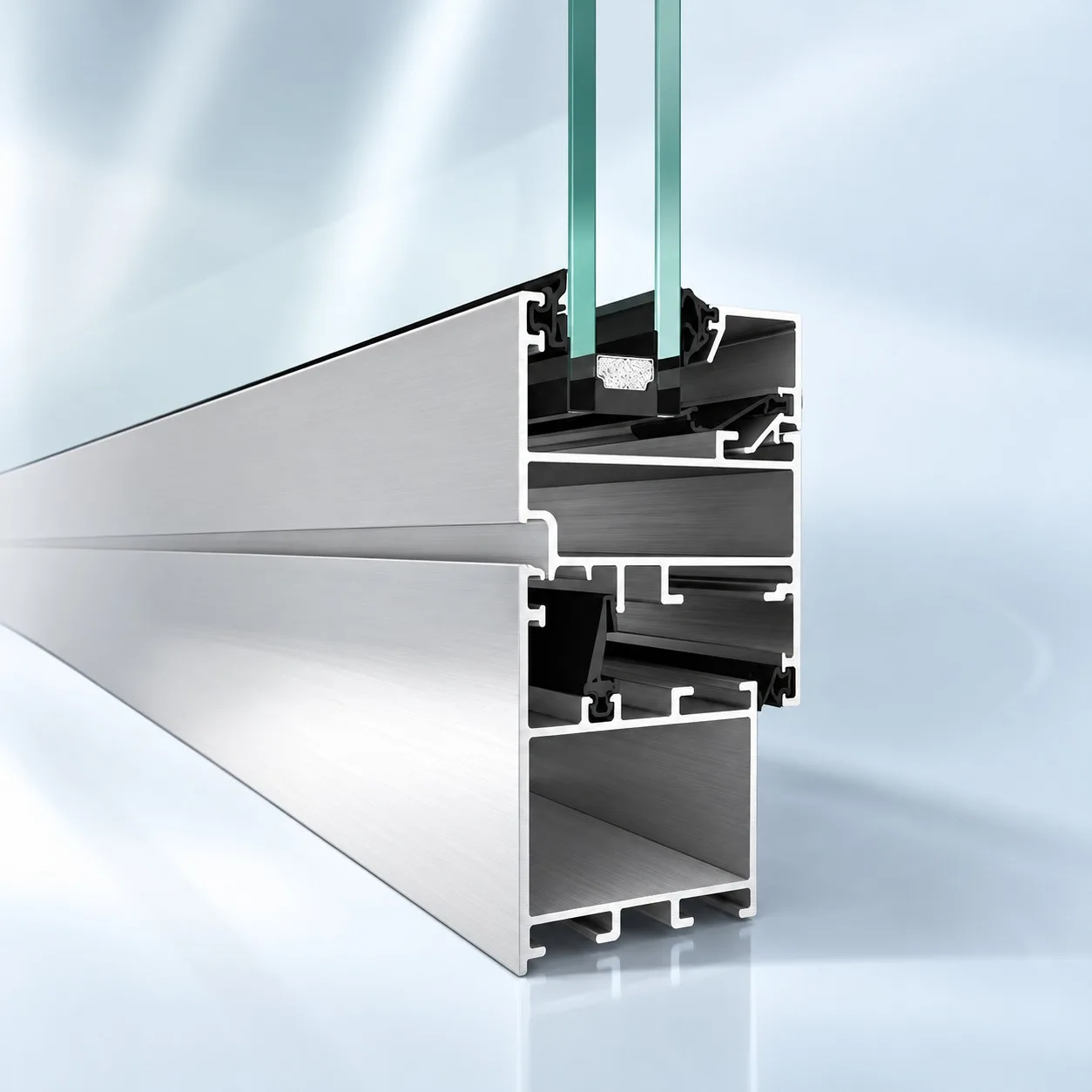

Schüco AWS 50.NI – Aluminium Casement Window System
The Schüco AWS 50.NI is a non-insulated aluminium casement window system designed for modern residential and commercial buildings. Featuring a 50 mm frame depth, it offers top-hung and side-hung opening options with glazing thicknesses from 4 mm to 40 mm. Engineered for reliable performance, the system supports sash weights up to 160 kg, sound insulation up to 43 dB, water tightness up to 600 Pa and wind load resistance up to 3000 Pa.
Key Features
- Versatile Casement Openings with top-hung and side-hung configurations for flexible ventilation.
- 50 mm Aluminium Frame Depth offering a clean, contemporary window design.
- Flexible Glazing & Sash Capacity supporting 4–40 mm glass thickness and sash weights up to 160 kg.
- Acoustic & Weather Performance with sound insulation up to 43 dB, water tightness up to 600 Pa and wind load resistance up to 3000 Pa.
| Specification | Value |
|---|---|
| Basic Frame Depth | 50 mm |
| Glass Thickness | 4–40 mm |
| Maximum Weight | Up to 160 kg |
| Water Tightness | Up to 600 Pa |
| Wind Load | Up to 3000 Pa |
| Air Permeability | Up to 600 Pa |
