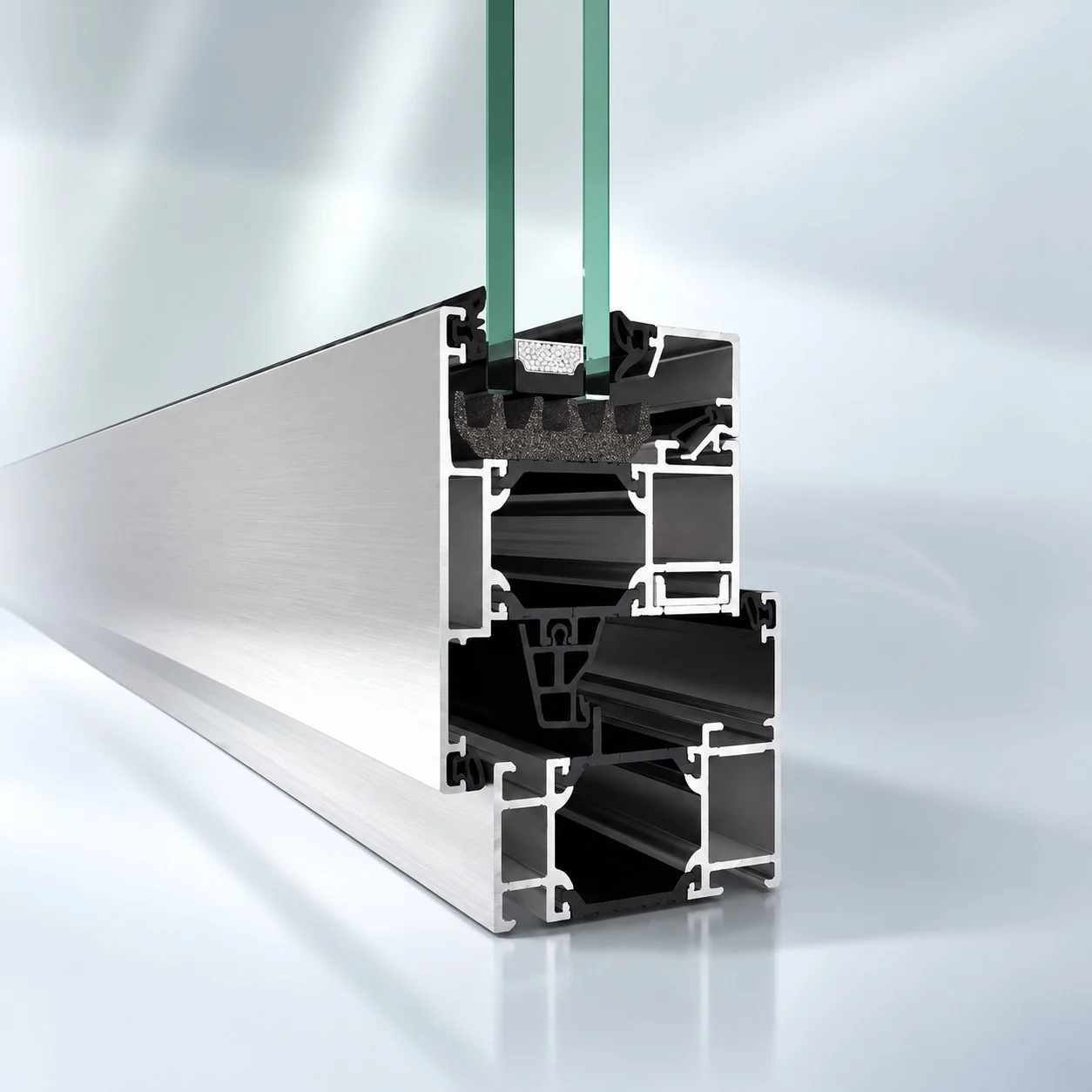

Schüco AWS 65.NI – Aluminium Window System
The Schüco AWS 65.NI is a non-insulated aluminium window system designed for modern residential and commercial buildings where thermal insulation is not required. Featuring a 65 mm frame depth, it offers flexible opening configurations, including side-hung, turn-and-tilt and double-vent windows. With versatile glazing options and durable aluminium profiles, the system combines architectural flexibility, functional design and reliable everyday operation.
Key Features
- 65 mm Non-Insulated Profiles provide durable aluminium construction for applications without thermal insulation requirements.
- Versatile Window Opening Options including side-hung, turn-and-tilt and double-vent configurations, subject to system compatibility.
- Flexible Hardware Integration supports practical operation and suitable locking configurations.
- Functional Design & Glazing Flexibility accommodates different architectural requirements for residential and commercial projects.
| Specification | Value |
|---|---|
| Maximum Vent Height | 2500 mm |
| Maximum Vent Width | 1700 mm |
| Max. Glass Thickness | 26 mm |
| Max. Weight (Per Shutter) | 160 kg |
| Sound Insulation | Up to 43 dB |
| Water Tightness | Up to 600 Pa |
| Wind Load | Up to 3000 Pa |
| Air Permeability | Up to 600 Pa |
