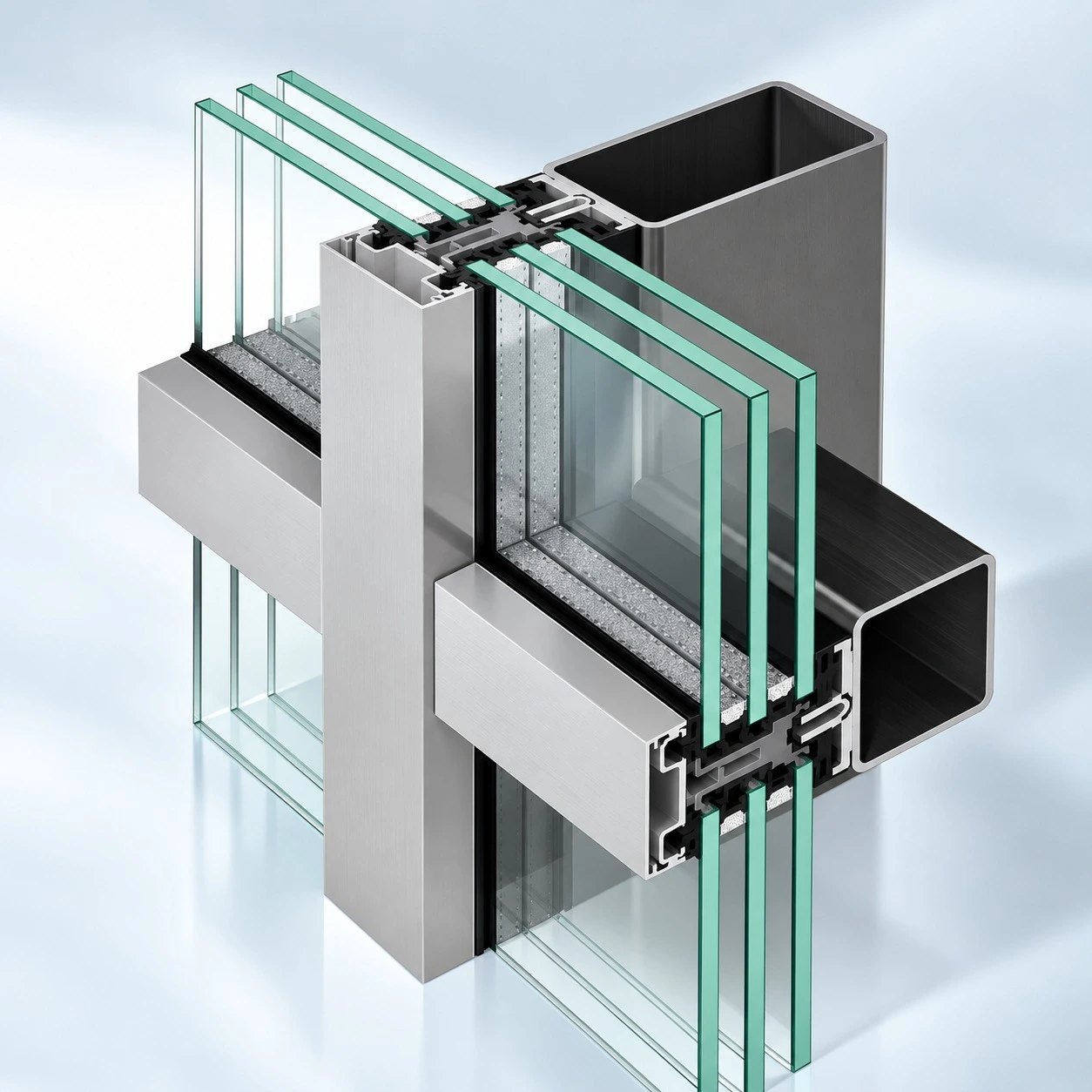

Schüco AOC 60 ST – Aluminium Façade & Skylight System for Steel Structures
The Schüco AOC 60 ST is an aluminium façade and skylight system designed for steel-supported curtain walls, commercial buildings and modern architectural projects. Featuring a 60 mm system width, it supports large glass panels, triple glazing and glass roofs with pitches as low as 2°. With optimised load transfer, energy-efficient construction and flexible glazing options, the system provides reliable solutions for expansive glass façades and architectural skylights.
Key Features
- 60 mm System Width: Creates a consistent architectural appearance for large glass façades.
- Steel Substructure Compatibility: Supports aluminium façade and curtain wall installations on steel frameworks.
- Large-Scale & Triple Glazing: Accommodates expansive glass panels and triple-glazed units for modern building designs.
- Façade & Skylight Applications: Suitable for vertical glass façades, glass roofs and skylights with pitches down to 2°.
| Specification | Value |
|---|---|
| Face Width | 60 mm |
| Maximum Weight | Up to 1080 kg |
| Max. Glass Thickness | 70 mm |
| Water Tightness | Up to 1200 Pa |
| Wind Load | Up to 3000 Pa |
| Air Permeability | Up to 600 Pa |
