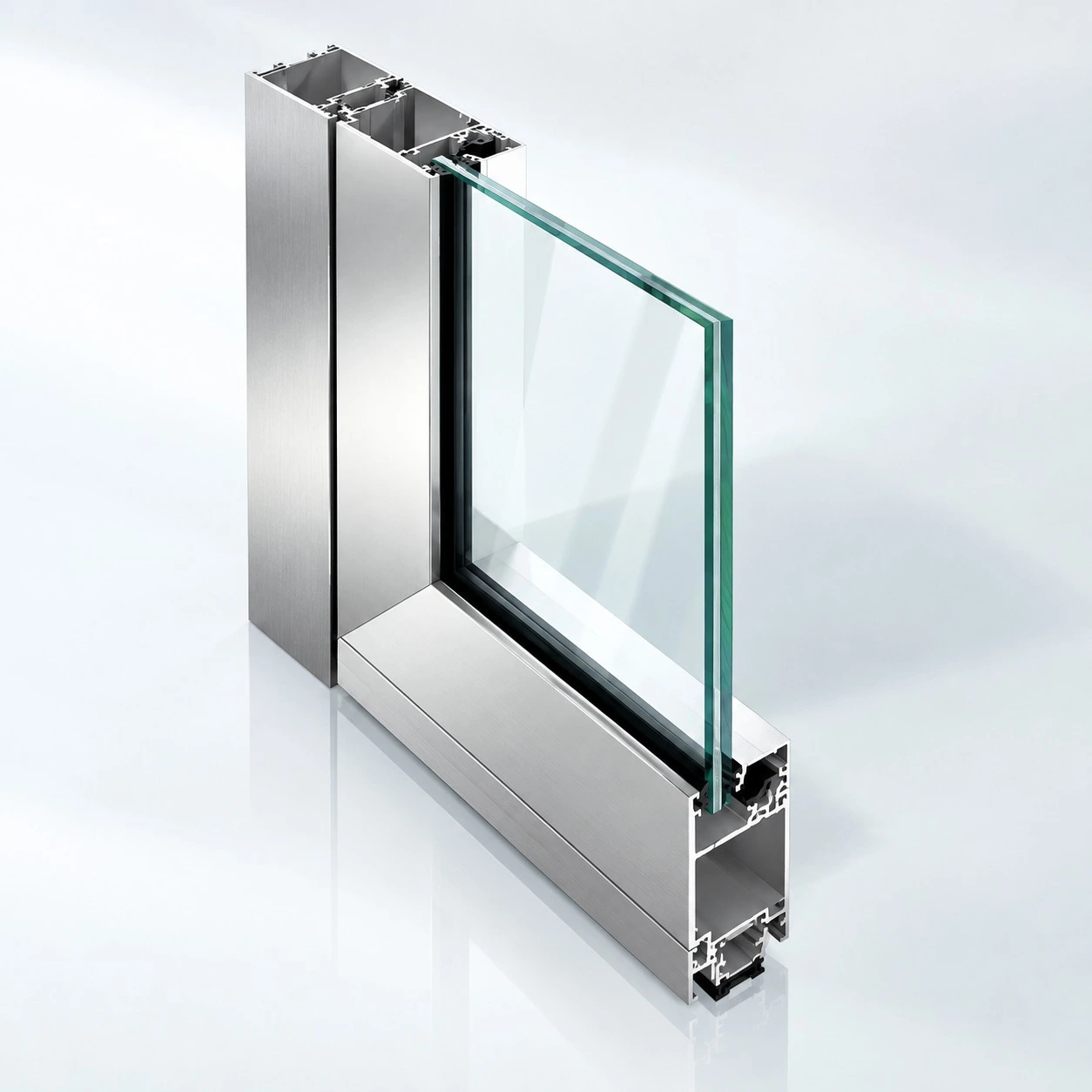

Schüco ADS 50.NI – Aluminium Door System
The Schüco ADS 50.NI is a non-insulated aluminium door system designed for modern residential interiors, offices and commercial spaces. Featuring a slim 50 mm frame depth, it supports floor-to-ceiling glass doors, single-leaf and double-leaf configurations with inward and outward opening options. With glazing thicknesses from 4 mm to 40 mm, door leaf weights up to 200 kg and compatibility with Schüco AWS 50.NI windows, the system combines contemporary design with flexible functionality.
Key Features
- Slim 50 mm Aluminium Profiles for elegant floor-to-ceiling glass doors and modern interiors.
- Versatile Door Configurations including single-leaf, double-leaf, inward-opening and outward-opening designs.
- Flexible Glazing & Door Capacity supporting glass thicknesses from 4 mm to 40 mm and door leaf weights up to 200 kg.
- Accessible & Integrated Design with optional flat thresholds and compatibility with Schüco AWS 50.NI aluminium windows.
| Specification | Value |
|---|---|
| Basic Depth | 50 mm |
| Glass Thickness | 4–40 mm |
| Maximum Weight (Per Door Leaf) | Up to 200 kg |
| Wind Load Resistance | Up to 3000 Pa |
| Water Tightness | Up to 600 Pa |
| Air Permeability | Up to 600 Pa |
